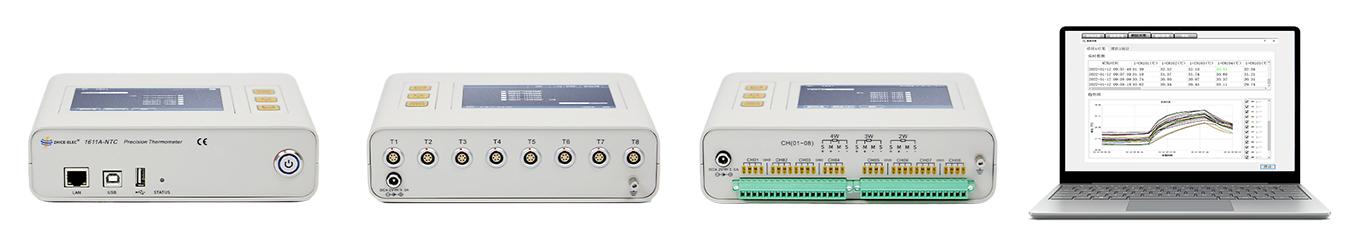

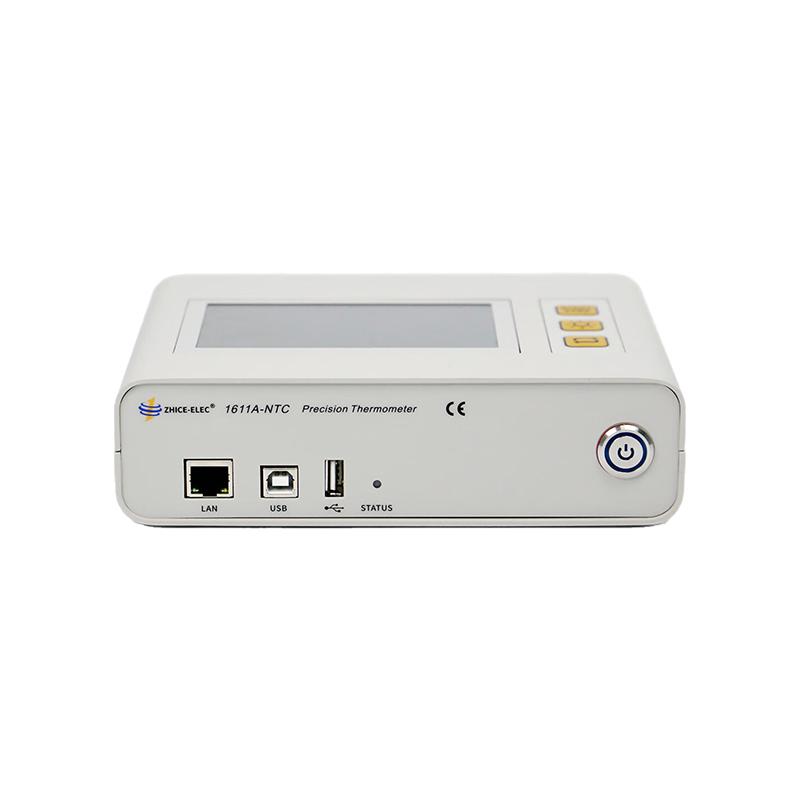

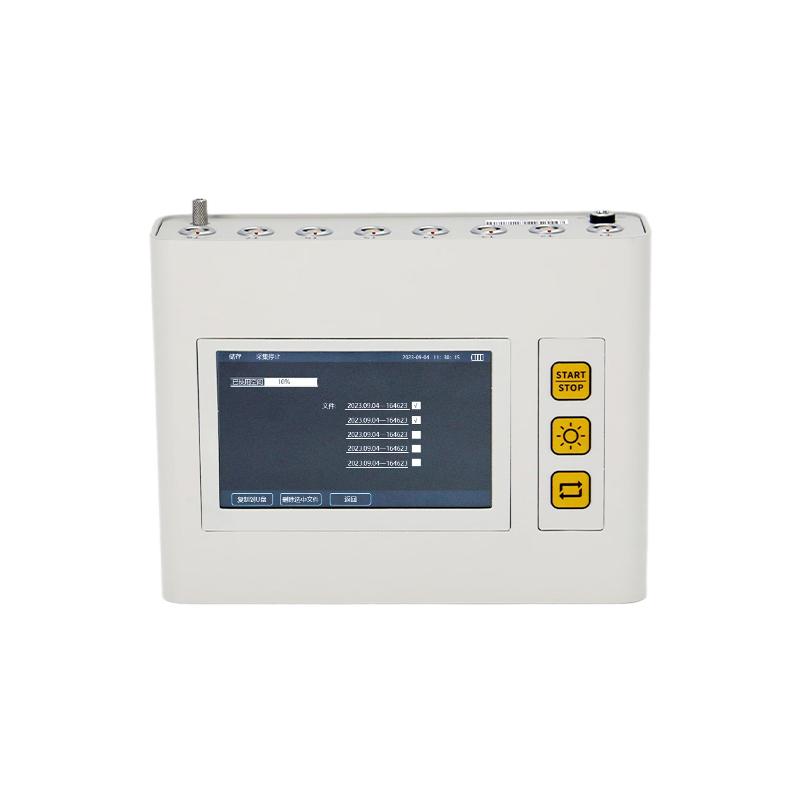

The 1611A/NTC Multi-Channel Precision Thermistor Thermometer is powered by a lithium battery, featuring a 5-inch touch screen and 8-channel measurements. It incorporates a built-in Steinhart-Hart thermistor polynomial. Designed for ease of use, versatility, and portability, the 1611A thermometer meets the demands for precise and convenient temperature measurement.
Specifications
|
Range |
0~100℃ |
|
Accuracy |
±0.02℃@0℃，±0.05℃@100℃ |
|
Resolutions |
0.001℃ |
|
Channel Number / Sampling Speed |
8-channel synchronous data acquisition, ≥1Hz. |
|
NTC Sensor |
2.252kΩ、5 kΩ、10 kΩ |
Features
|
Display |
5-inch touch screen, displays temperature, resistance values, and trend graphs |
|
Excitation Current |
10 uA |
|
Sensor Wiring |
4-wire、2-wire |
|
Sensor Connection |

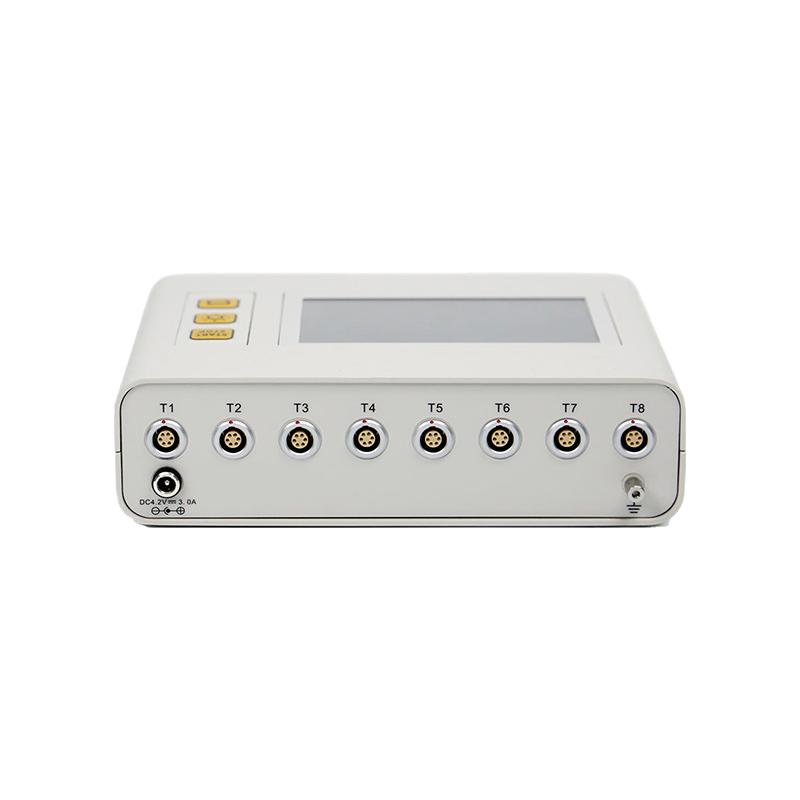

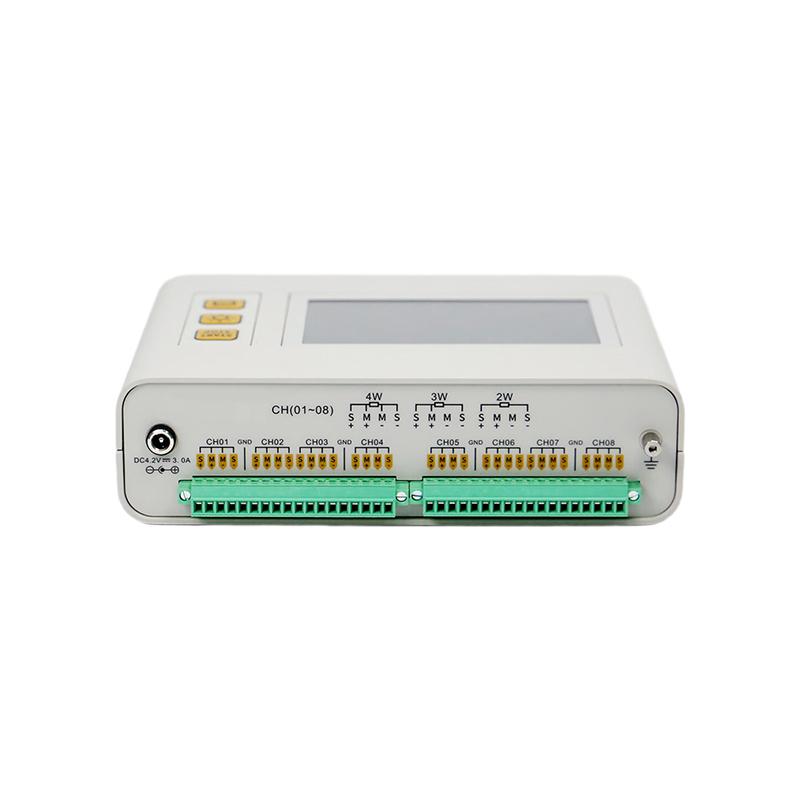

T: 2 sets 18PIN *3.8lmm terminal blocks, or P: 6 pin intelligent aviation plug |
|
Communication |
LAN、USB |
|
Storage |
8G memory, U disk storage |
|
Acquisition Software |
ZCDAQ TEMP acquisition software, with collection, recording, analysis, and statistical functions |
|
Power Supply |
≤3W |
|
Battery |
Built-in rechargeable lithium battery, capacity approximately 13000mAh |
|
Size（W*D*H） |
195*149*53mm |
|
Accessories: 1 soft bag, 1 set of lithium battery charger, 1 USB cable, 1 RJ45 cable. |
|
NTC Temperature Probes
Specifications
|
Model |
Accuracy |
Long-term drift |
Wiring |
Probe Size |
Thread size |
Lead size, material |
Connection Type |
|
AN10/ANK10（armored） |
±0.1°C |
±0.1°C |
2、4 |
customizable |
customizable |
ф1.7mm, TFE, etc. can be customized |
Bare wires, terminals, inserts, aviation plugs, etc. |
|
AN20/ANK20（armored） |
±0.05°C |
±0.05°C |
|||||
|
AN21/ANK21（armored） |
±0.02°C |
±0.02°C |
* High Precision Customization Available
Type and Material
|

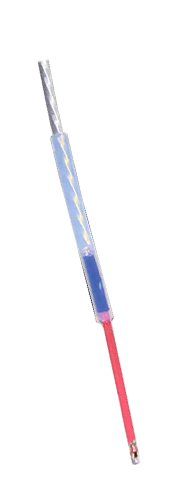

Beaded |

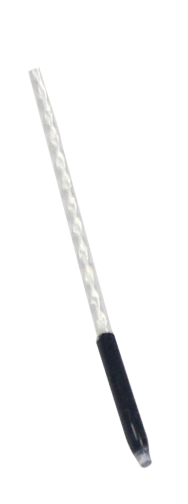

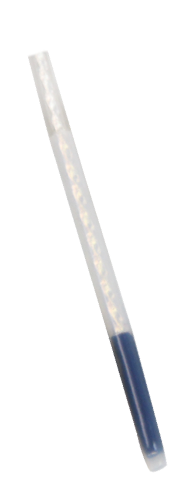

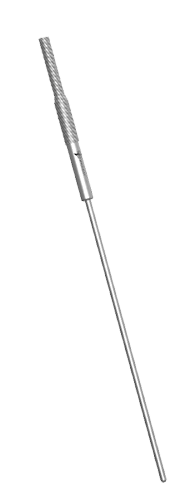

Step |

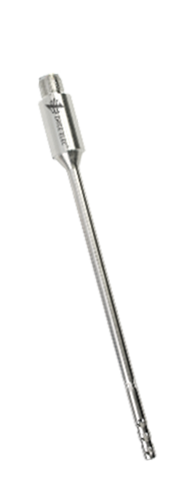

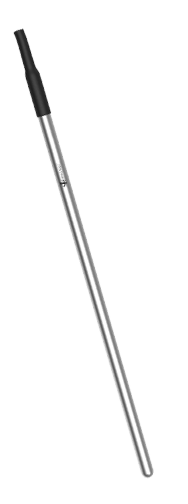

Tube |

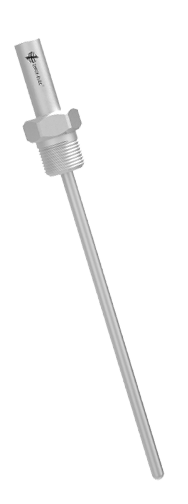

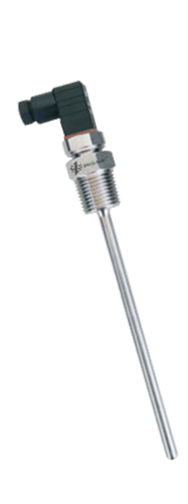

Thread -ed Mounting |

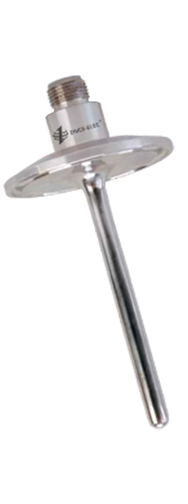

Clamp |
DIN Integrated |
Assembly Type |
Perforat -ed |

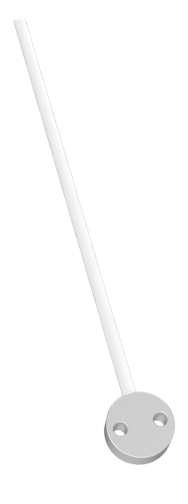

Surface mount -ed |

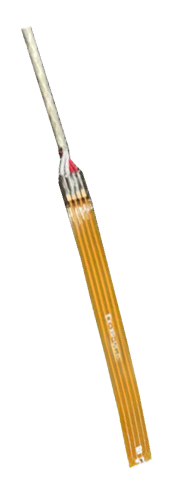

FPC |
||
| PFA |
316L |
316L |
316L |
316L |
316L |
316L |
316L |
Aluminum, copper |
FPC |
||
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
ф1.5*20mm |
ф2.3*40mm |
ф2.7*40mm |
|||||||||
