1611A/PCR Thermal Cycler Temperature Verification System

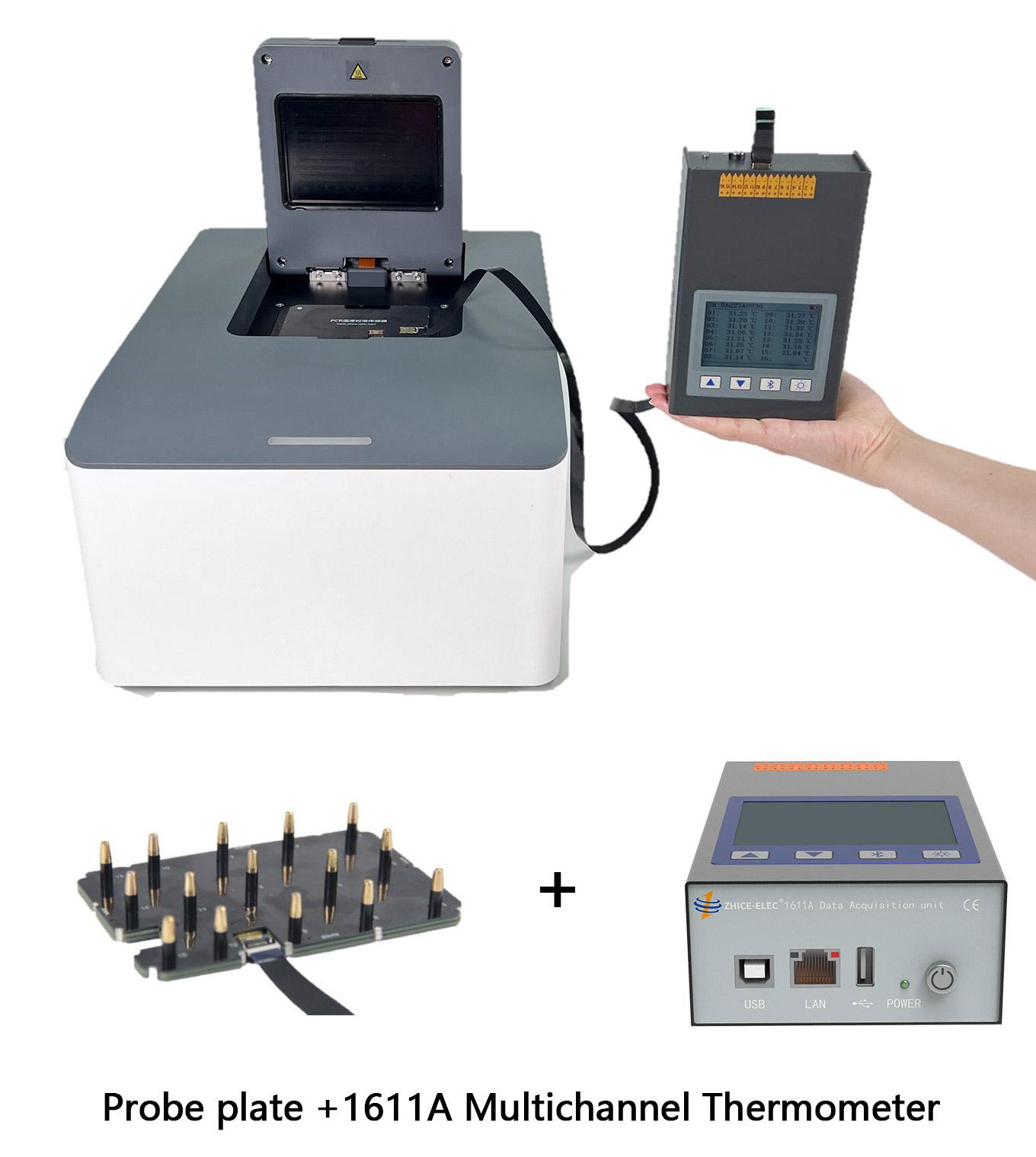

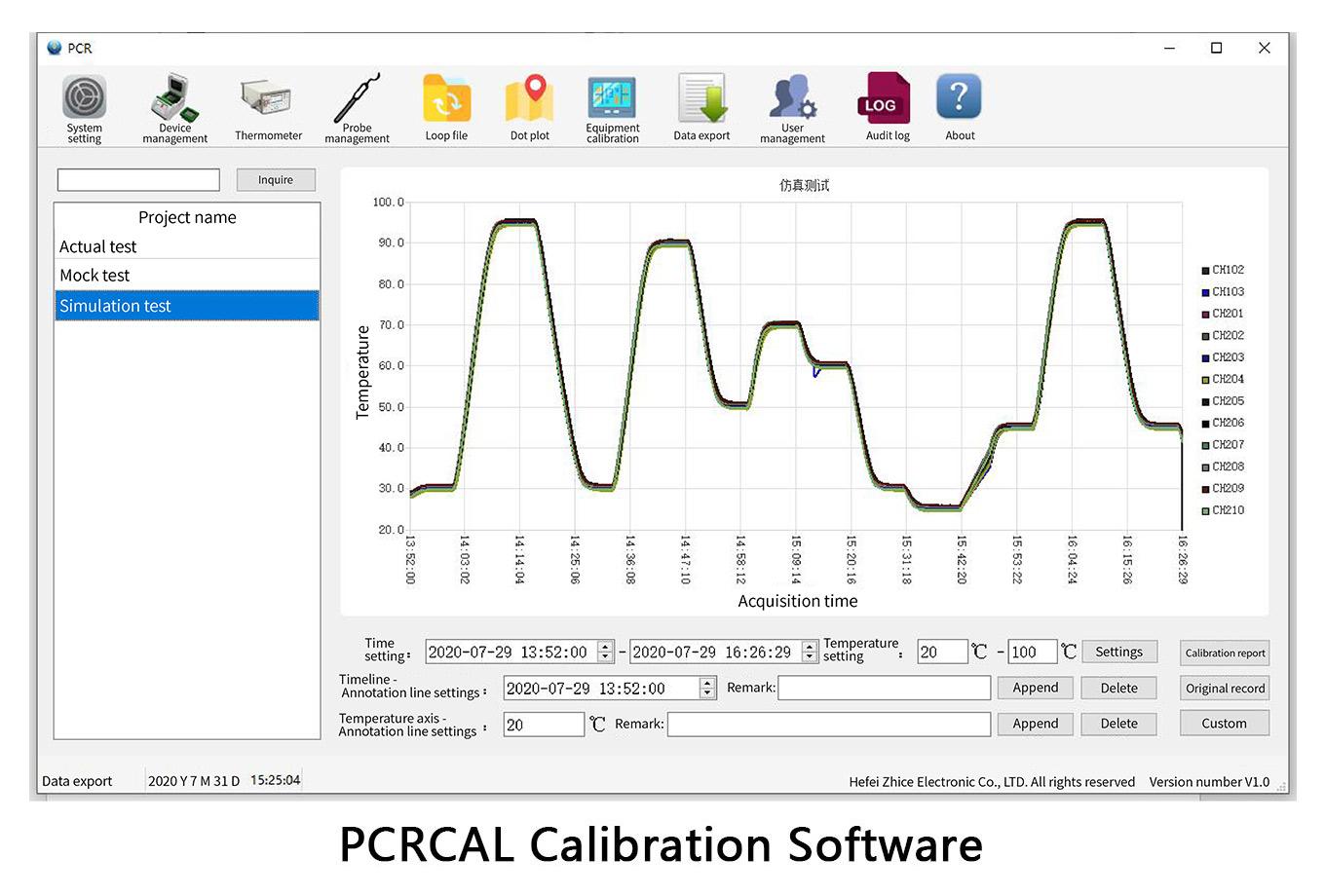

The 1611A/PCR thermal cycler calibration system is a professional PCR thermal cycler calibration system. The system is equipped with various sensor configurations, allowing calibration of virtually any thermal cycler. Customization services is available for specific sensor placement requirements. The system includes multi-channel high-precision thermometers, high-precision, high-sensitivity thermistor probes, and dedicated data processing software PCRCAL, providing efficient assistance for engineers to analyze temperature accuracy, uniformity, fluctuation, and other parameters.

Features

• 10ms/ high-speed acquisition per channel.

• 0.05℃ measurement accuracy, 0.01 resolution.

• Real-time data display.

• 3.5-inch LCD display, easy to use.

• Input connection mode: 2-wire, 4-wire optional.

• 16-channel (2-wire) or 8-channel (4-wire) input.

• DC adapter or lithium battery power supply is optional.

• Store data in inner memory or in USB.

• LAN, USB, RS485/RS232, Bluetooth communication.

• Mobile APP can be used to configure 1611A.

• Suitable for 96/48/32 hole PCR instrument calibration.

• Calibration according to ITS-90 International temperature scale and PCR specification.

• Automatically generate calibration reports with the software.

•  2 years warranty.
