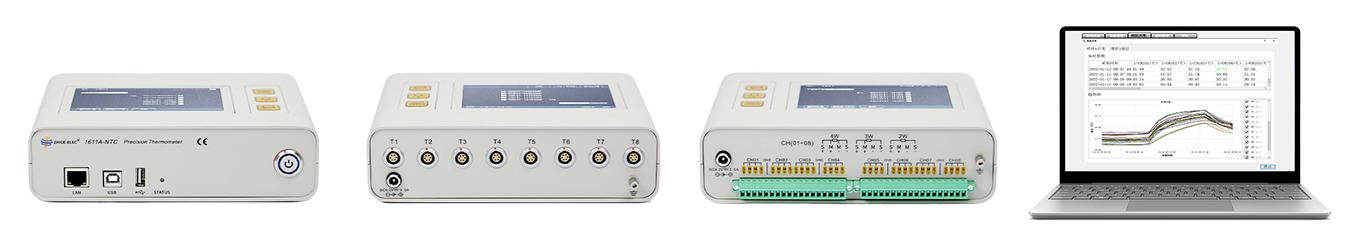

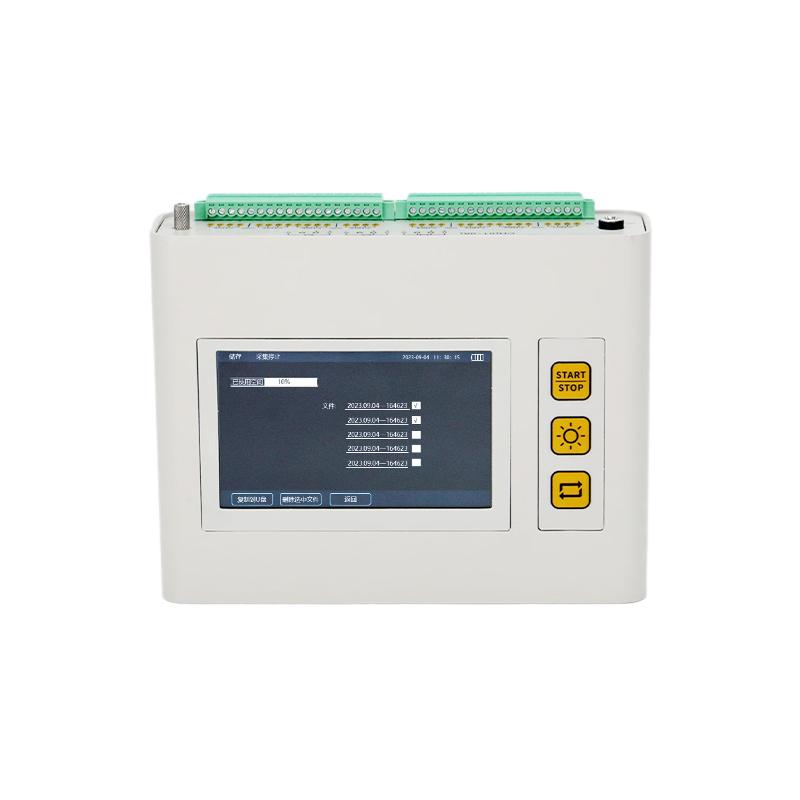

1611A/RTD Precision Multi-Channel Platinum Resistance Thermometer (RTD), powered by lithium battery, features a 5-inch touchscreen, 8 channels, built-in ITS-90 temperature standard and RTD polynomial. The 1611A multi-channel temperature thermometer is characterized by convenient operation, comprehensive functions, and portability, meeting customers' demands for precise temperature measurements.
Specifications
|
Measurement Range |
-200~850℃ |
|
Accuracy |
±0.03℃@0℃ |
|
Resolution |
0.001℃ |
|
Channel Number / Sampling Speed |
8-channel synchronous data acquisition, ≥1Hz. |
|
PRT Sensor |
PT100/PT1000... |
Features
|
Display |
5-inch touch screen, displays temperature, resistance values, and trend graphs |
|
Excitation Current |
100uA、1mA |
|

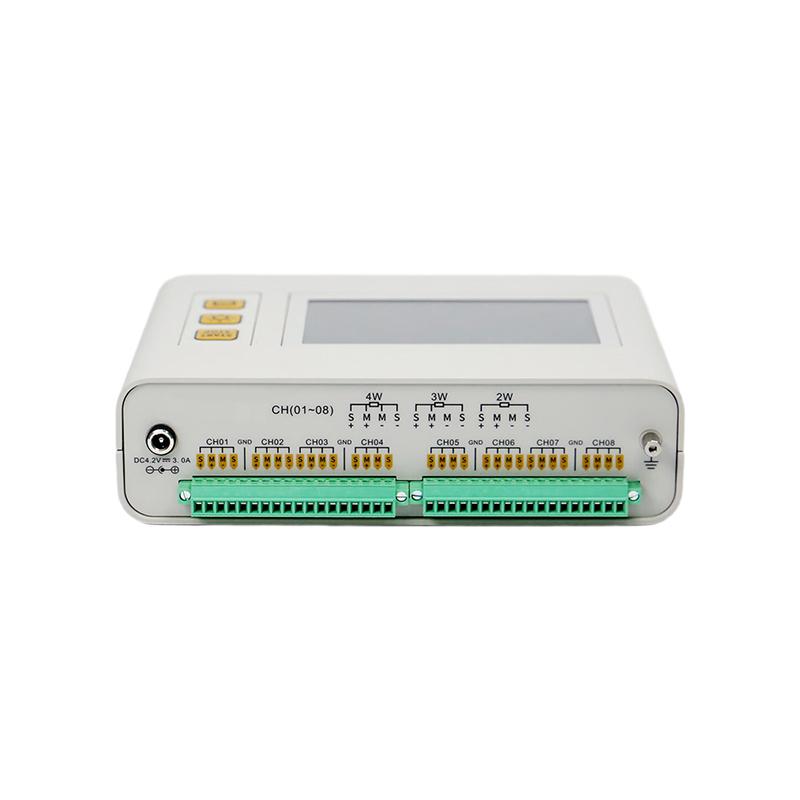

Sensor Wiring |
4-wire, 3-wire, 2-wire |
|
Sensor Connection |

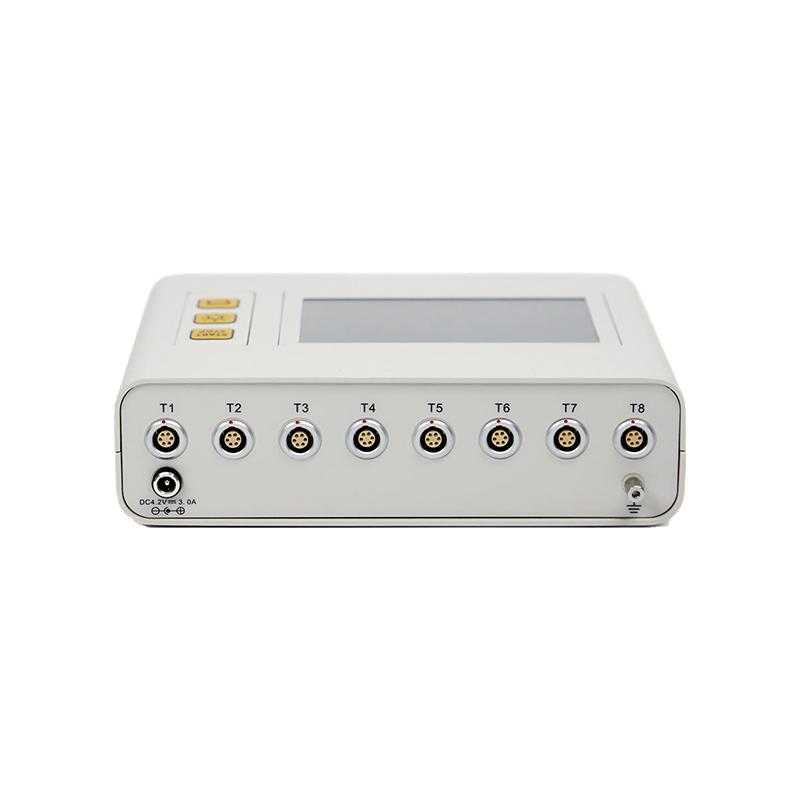

T: 2 sets 18PIN *3.81mm terminal blocks，or P: 6 pin intelligent aviation plug |
|

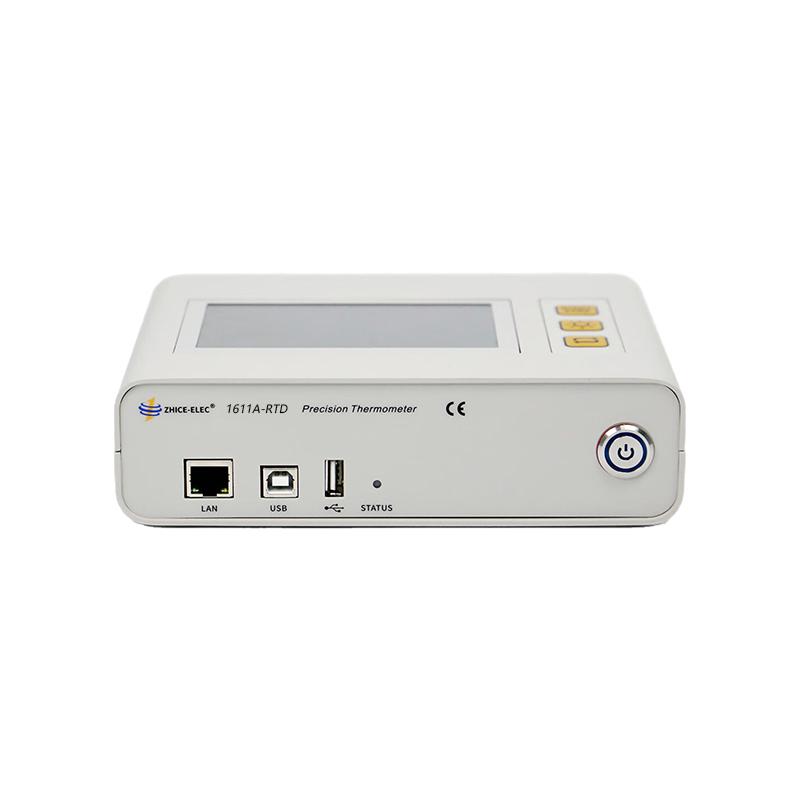

Communication |
LAN、USB |
|
Storage |
8G memory, U disk storage |
|
Acquisition Software |
ZCDAQ TEMP acquisition software，with collection, recording, analysis, and statistical functions |
|
Power Supply |
≤3W |
|
Battery |
Built-in rechargeable lithium battery, capacity approximately 13000mAh |
|
Size (W* D* H） |
195*149*53mm |
|
Accessories: 1 soft bag, 1 set of lithium battery charger, 1 USB cable, 1 RJ45 cable. |
|

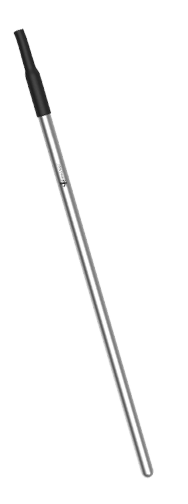

PT100/PT1000 PRT temperature probes
Specifications
|
Model |
Class |
Accuracy |
Wiring |
Probe size |
Thread size |
Cable size and material |
Connection Type |
|
AR22/ARK22（armored） |
A级 |
±(0.15°C +0.002|t| ) |
2、3、4 |
customizable |
customizable |
ф3mm, TFE, etc. can be customized |
Bare wires, terminals, inserts, aviation plugs, etc. |
|
AR23/ARK23（armored） |
1/3B级 |
±(0.10℃ +0.0017|t| ) |
|||||
|
AR24/ARK24（armored） |
1/10B级 |
±(0.03℃ +0.0005|t| ) |
Type and Material
|
Step |
Tube |

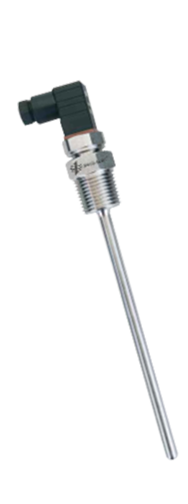

Threaded Mounting |

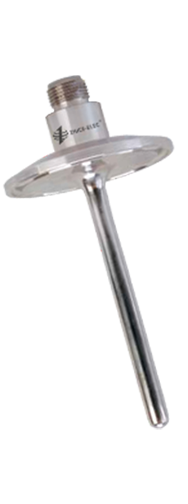

Clamp |

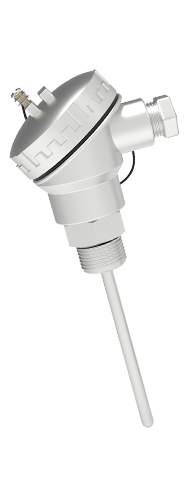

DIN Integrated |
Assembly-Type |

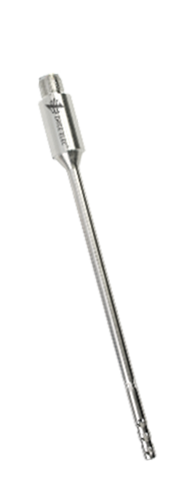

Perforated |

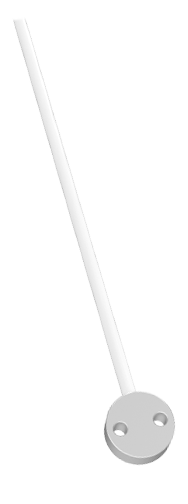

Surface mounted |

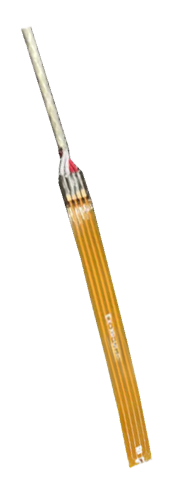

FPC |
|
316L |
316L |
316L |
316L |
316L |
316L |
316L |
Aluminum, copper |
FPC |
 |
 |
 |
 |
 |
 |
 |
 |
 |
