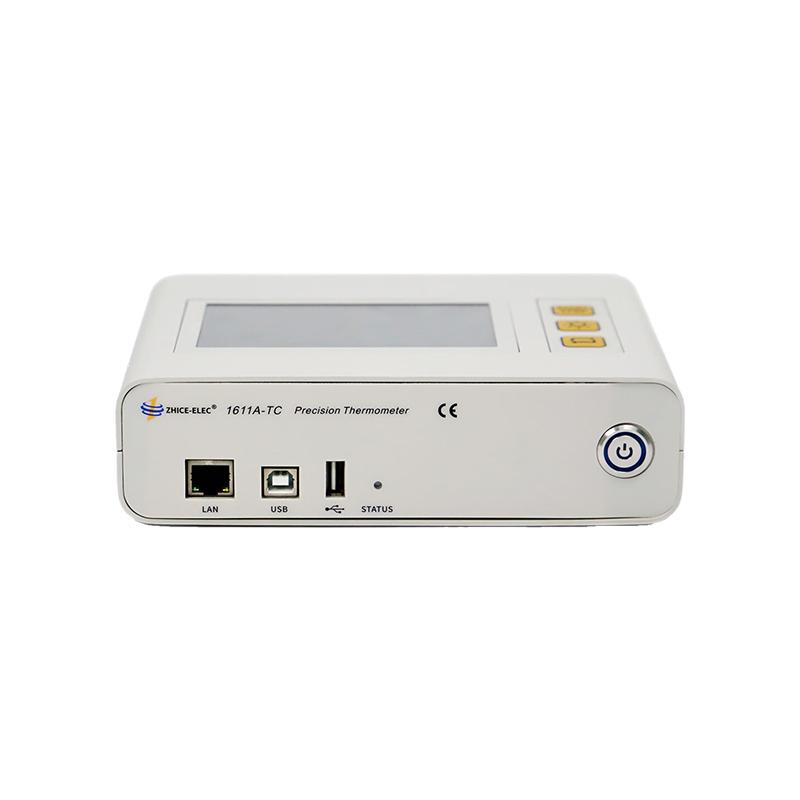

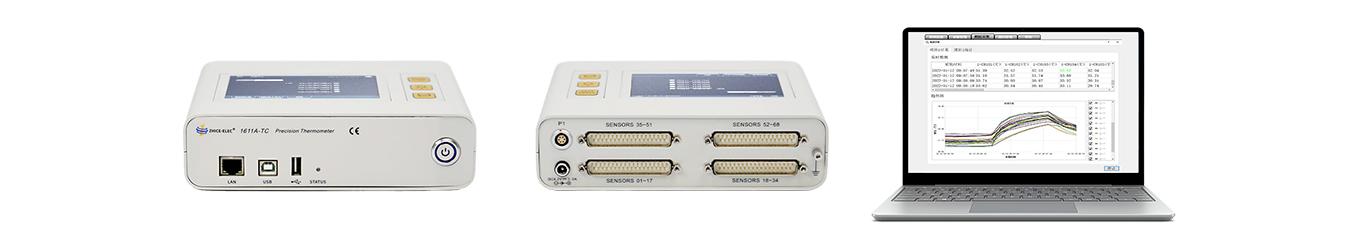

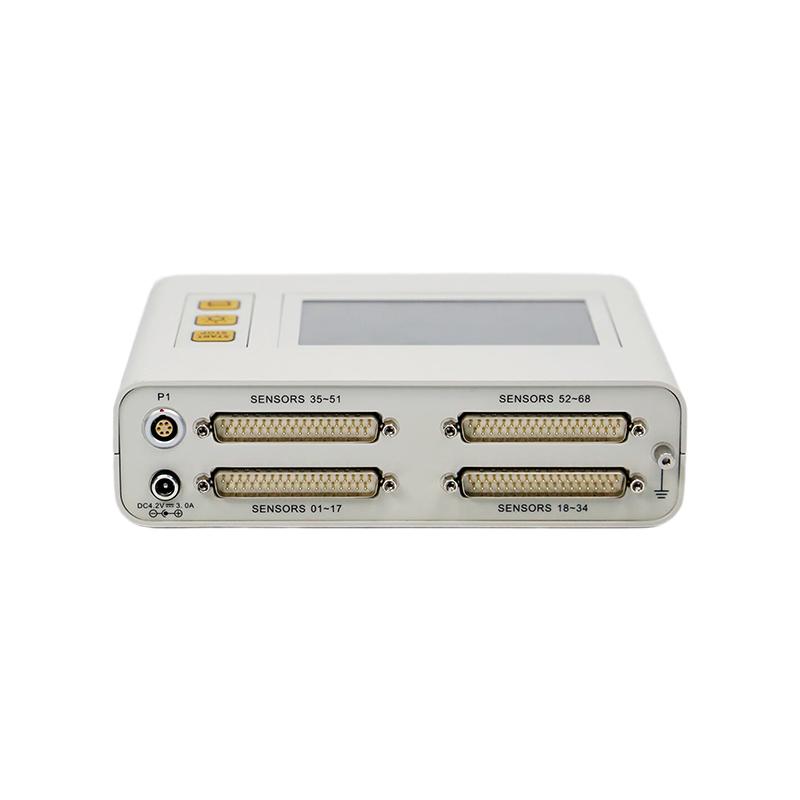

The 1611A/TC is powered by a lithium battery, featuring a 5-inch touch screen and 68-channel measurements. It includes built-in conversion formulas for various thermocouple types such as K, T, N, S, and R. The 1611A Multi-Channel Thermometer is designed for ease of use, versatility, and portability, meeting the demands for precise and convenient temperature measurement.
Specifications
|
Resolution |
0.01℃ |
|
Sampling Speed |
1Hz |
|
Channel Number |
17x4 channels |
|
Sensor Input |
K、T、N、J、E、B、R、S |
|
Internal Cold Junction Accuracy |
±0.2℃ |
Features
|
Display |
5-inch touch screen, displays temperature, mV values, and trend graphs |
|
Sensor Connection |
Temperature Sensor Connection: DB37*4 Terminals, Pressure Sensor Connection: 6-Pin Aviation Plug |
|
Communication |
LAN、USB |
|
Storage |
8GB Memory, USB Storage |
|
Acquisition Software |
ZCDAQ TEMP software, features data acquisition, recording, analysis, and statistical functions |
|
Power |
≤3W |
|
Battery |
Built-in rechargeable lithium battery, capacity approximately 13000mAh |
|
Size (W* D* H） |
195*149*53mm |
|
Accessories: 1 soft bag, 1 set of lithium battery charger, 1 USB cable, 1 RJ45 cable. |
|

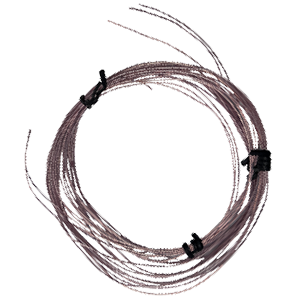

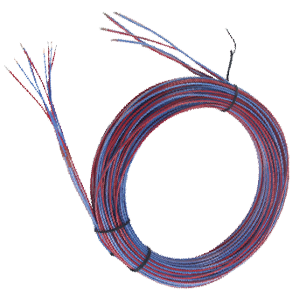

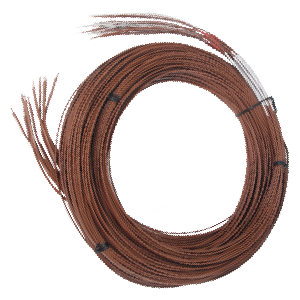

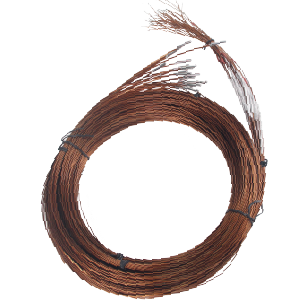

PT100/PT1000 PRT temperature probes
Specifications
|
Model |
TC-K-24-INC |
TC-K-24-SB |
TC-K-24S-KAP |
TC-T-24-PFA |
TC-T-24S-PFA |
TC-T-30-PFA |
|
|
 |
 |
 |
 |
 |
 |
|
Wire Gauge |
24 |
24 |
24 |
24 |
24 |
30 |
|
Withstand Temperature |
1080℃ |
482℃ |
400℃ |
260℃ |
260℃ |
150℃ |
|
Nominal Size |
4.0*3.3mm |
2.8*1.9mm |
1.1*1.8mm |
1.4*2.4mm |
3.0*1.7mm |
0.6*1.0mm |
|
Wiring |
Single Wire |
Single Wire |
7-wire |
Single Wire |
7-wire |
Single Wire |

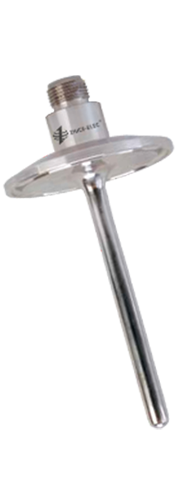

Type and Material
| Step | Tube |
Threaded Mounting |
Clamp |
DIN Integrated |
Assembly-Type | Perforated |
Surface mounted |
FPC |
| 316L | 316L | 316L | 316L | 316L | 316L | 316L |
Aluminum,copper |
FPC |
 |
 |
 |
 |
 |
 |
 |
|
 |
