Multi-channel Temperature Module

Multichannel Precision Temperature Module/TC

Multichannel Precision Temperature Module/TC

Type:Precision temperature module/TC

  • Product Details

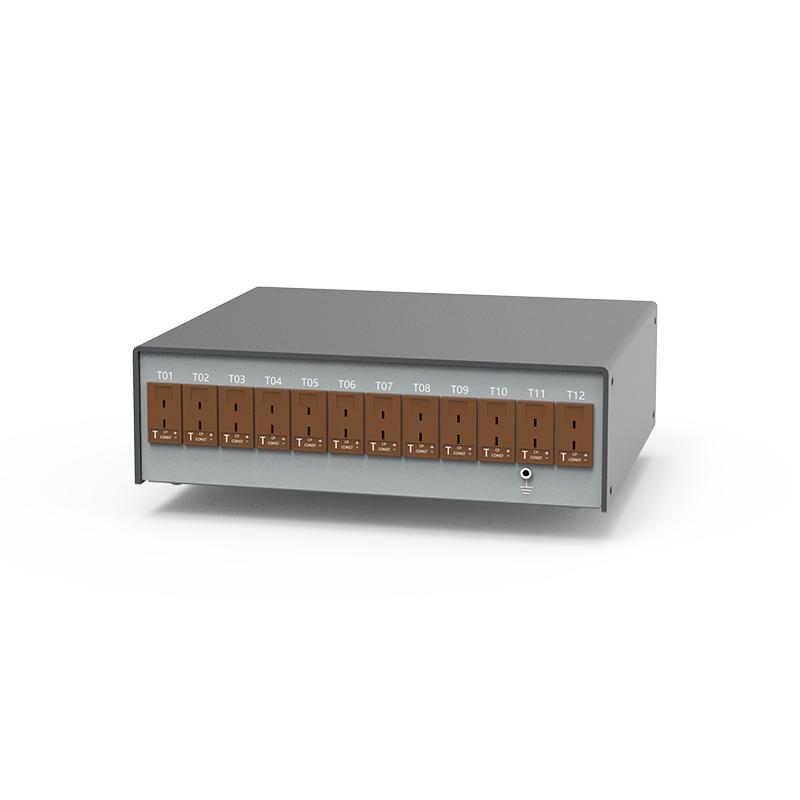

12-channel miniature socket temperature module

Features

  • Miniature socket connection

  • Maximum 12-channel thermocouple temperature measurement

  • Channel independent switch control

  • Operational failure indication

  • RJ45, RS485, USB, Bluetooth communication ports

  • Modbus communication protocol

  • Support standard rail mounting

  • Programmable module address, baud rate, network port, etc

  • AC220V/DC24V power supply



17x4 D-sub connector temperature module

Features

  • Integrated DB37 terminal connection

  • Temperature measurement up to 68 channels

  • Channel independent switch control

  • Operational failure indication

  • LAN, RS485, USB, Bluetooth communication ports

  • Modbus communication protocol

  • Support standard rail mounting

  • Programmable module address, baud rate, network port, etc

  • AC220V/DC24V power supply



Specifications



Name

12-channel miniature socket temperature module

17x4 D-sub connector temperature module

Model

Precision temperature module/TC/MPJ*12

Precision temperature module/TC/DB17

Temperature probe type

K type  thermocouple

T type  thermocouple

K type  thermocouple

T type  thermocouple

Temperature measuring range

-270~1372℃

-270~400

-270~1372

-270~400

Measurement accuracy

±1.1℃±0.1%readouts

±0.6℃±0.1%readouts

±1.1℃±0.1%readouts

±0.5℃±0.1%readouts

Measurement resolution

≤0.01

≤0.01

Number of measuring channels

12

17*1、17*2、17*3、17*4(Optional and extensible)

Sampling frequency

≥1Hz/Per channel

≥1Hz/Per channel

Running/failure indicator

Yes

Yes

Temperature probe interface

MPJ Miniature thermocouple socket

DB37(17CH)

Net interface

RJ45

RJ45

USB port

USB Type-B

USB Type-B

RS485 port

Terminal

Terminal

Bluetooth

Bluetooth5.0

Bluetooth5.0

Communication protocol

Modbus

Modbus

Application software

DAQ data acquisition software, data acquisition,

record, statistical analysis

DAQ data acquisition software, data acquisition,

record, statistical analysis

Power(W)

≤3W

≤3W

Power supply(V)

AC220V/DC24V(Can be Selected)

AC220V/DC24V(Can be Selected)

Power interface

AC Electrical outlet / DC3*7.62mm Terminal

AC Electrical outlet / DC3*7.62mm Terminal

Installation mode

Optional 35mm standard guide rail installation

Optional 35mm standard guide rail installation

Module reference size(mm)

188*160*56(L*W*H)

188*160*56(L*W*H)
