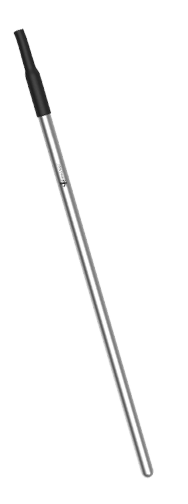

Precision Platinum Resistance Temperature Sensor

Precision Platinum Resistance Temperature Sensor

Platinum thermal resistance has the advantages of stable indication value, high measurement accuracy, and a certain degree of vibration shock resistance, and is widely used in precision temperature measurement.

Smart measurement Electronics has a full set of sensor production, processing and testing equipment, with high-precision temperature sensor production, research and development and product customization capabilities, for semiconductor equipment, aerospace, intelligent manufacturing, university laboratories, metrology institutes, biotechnology and other industries to provide professional high-precision temperature measurement solutions.

  • Product Details

Platinum thermal resistance has the advantages of stable indication value, high measurement accuracy, and a certain degree of vibration shock resistance, and is widely used in precision temperature measurement.

Smart measurement Electronics has a full set of sensor production, processing and testing equipment, with high-precision temperature sensor production, research and development and product customization capabilities, for semiconductor equipment, aerospace, intelligent manufacturing, university laboratories, metrology institutes, biotechnology and other industries to provide professional high-precision temperature measurement solutions.



PT100/PT1000 PRT temperature probes

Specifications

Model

Class

Accuracy

Wiring

Probe size

Thread size

Cable size and material

Connection Type

AR22/ARK22(armored)

Class A

±(0.15°C

+0.002|t| )

2、3、4

customizable

customizable

ф3mm, TFE, etc.

 can be customized

Bare wires,

terminals, inserts,

aviation plugs, etc.

AR23/ARK23(armored)

Class 1/3B

±(0.10℃

+0.0017|t| )

AR24/ARK24(armored)

Class 1/10B

±(0.03℃

+0.0005|t| )



Type and Material

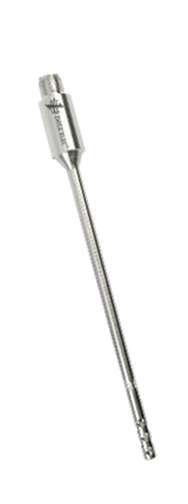

Step

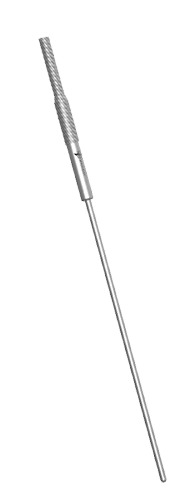

Tube

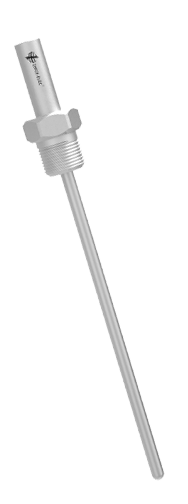

Threaded Mounting

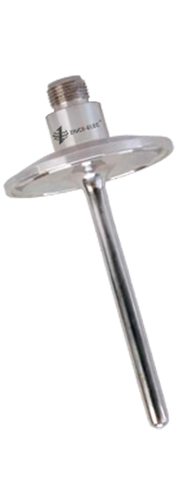

Clamp

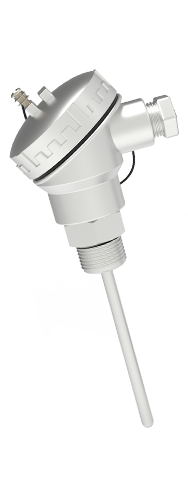

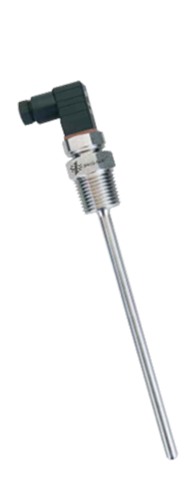

DIN

Integrated

Assembly-Type

Perforated

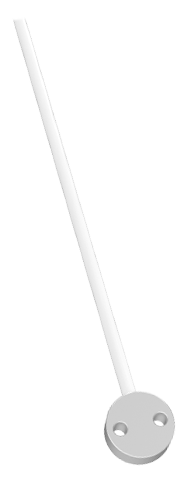

Surface

mounted

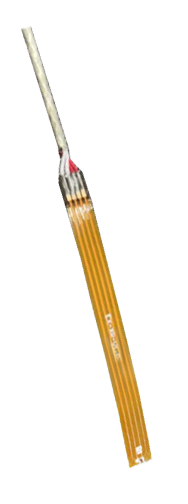

FPC

316L

316L

316L

316L

316L

316L

316L

Aluminum,

copper

FPC
