Automatic Pure Steam Sampler

Steam SS Automatic Pure Steam Sampler

Steam SS Automatic Pure Steam Sampler

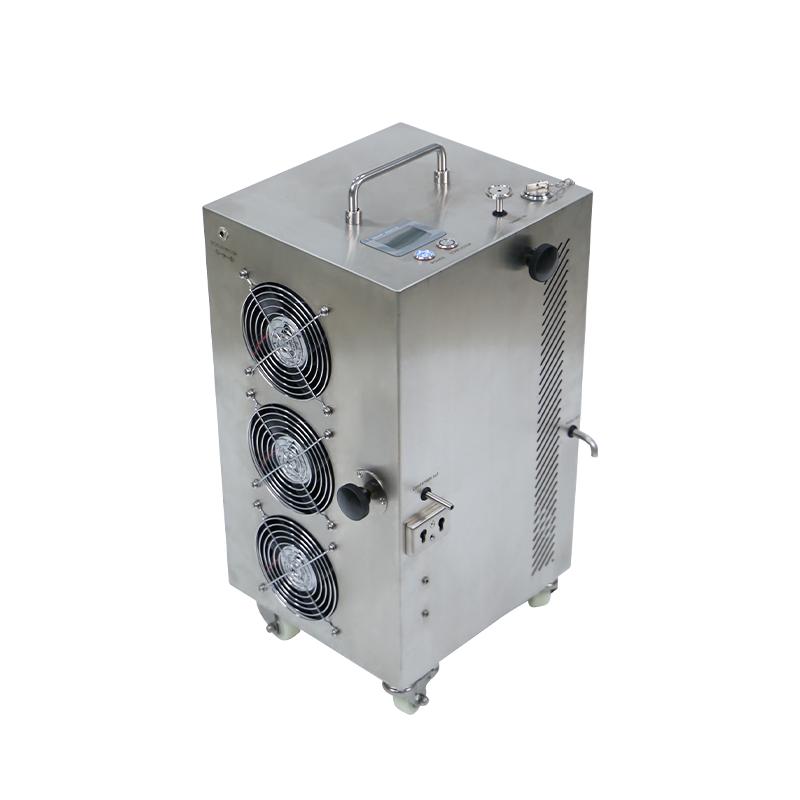

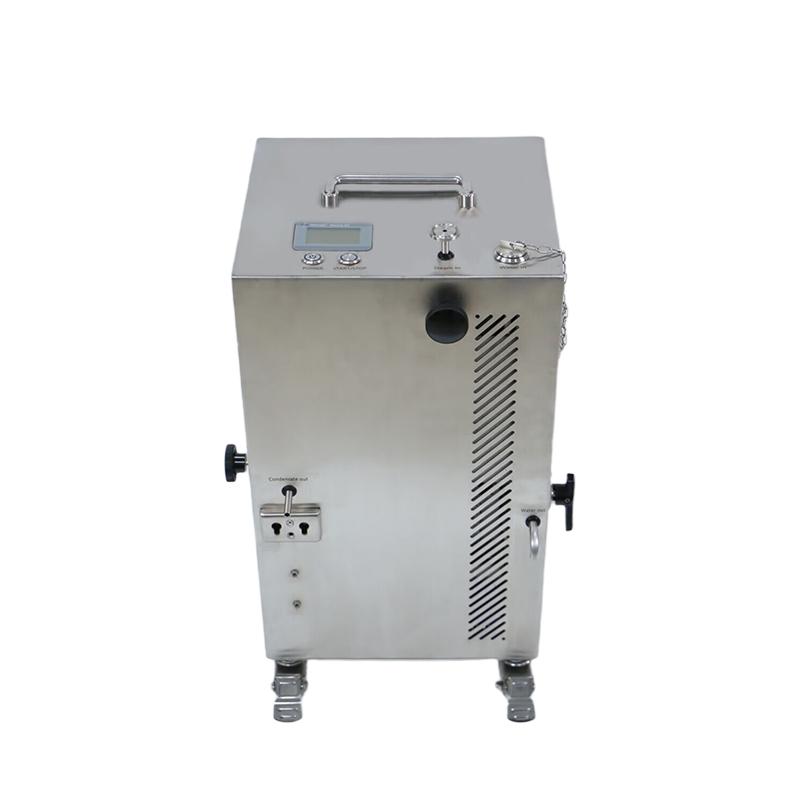

Steam SS Automatic Pure Steam Sampler is designed for efficient pure steam condensation. With internal circulating water design, the cooling water only need to be refilled once. 316L stainless steel surface and fully hygienic design meet GMP requirements for pharmaceutical industry.

  • Product Details

Features

Internal Circulating Water Condensation Design

Efficient and convenient sampling. The cooling water only need to be refilled once and recycle. No need for replace-ment.

Real-time display, Intelligent sterilization

Real-time monitoring of steam temperature, dynamic display of sterilization parameters, intelligent judgement of kill rate,and guarantee of sampling pipeline sterilization.

GMP Compliance

The pure steam coil is made of 316L, with a fully hygienic design, which meets the requirements of GMP for pharma-ceutical equipment, and the equipment can be sterilized.

Easy Operation

Press the "START" button to start smart sampling; sampling speed is about 100mL/min, 300ml/min.





EN285: Sterilization Pure Steam Condensate Quality

Determinant Criteria
Silicate ≤0.1mg/L
Chloride ≤0.1mg/L
Rest of heavy metals except iron, cadmium, lead ≤0.1mg/L
Conductivity (25℃) ≤3μs/cm
PH  Value 5-7

Hardness(the total number of alkaline earthions)

≤0.02mmol/L

Lithium battery power supply,continuously work for more than 4 hours

Overall weight: around 8kg / 12kg

Size: 190*180*340mm/260*240*430
