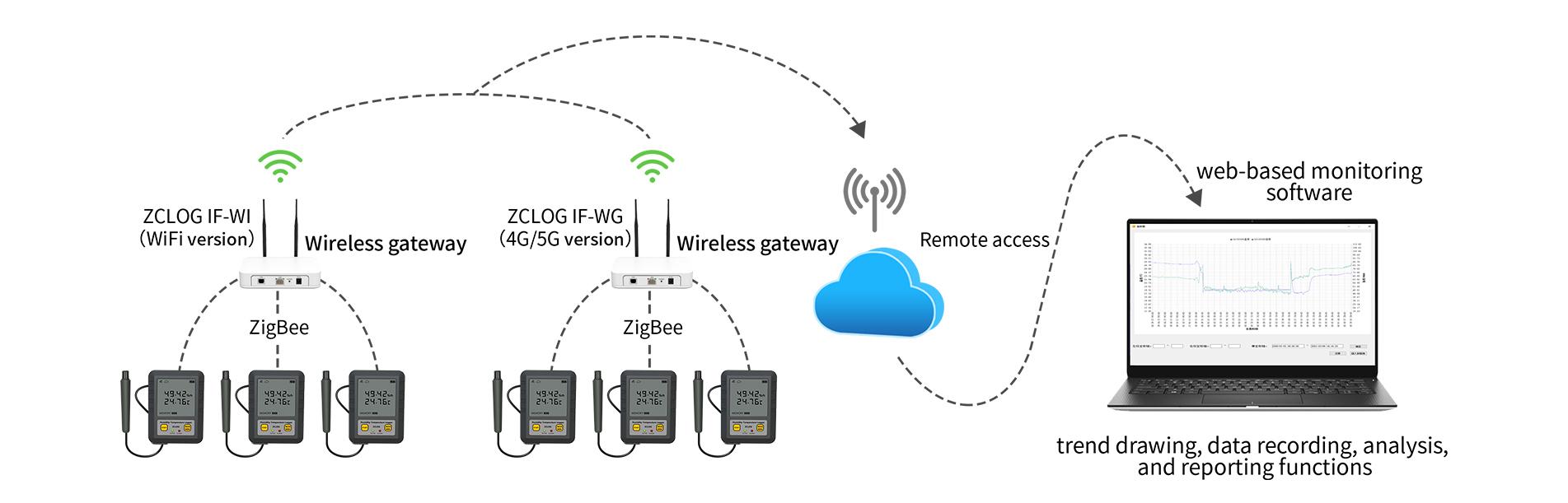

298 ZigBee wireless real-time temperature, temp and humidity logger, monitors temperature and humidity data in real time, and forms a wireless real-time environmental temperature and humidity monitoring system with wireless gateway and software. The web-based monitoring software has powerful trend drawing, data recording, analysis, and reporting functions. The temperature and humidity sensors used in the logger has excellent stability and repeatability.
298 ZigBee wireless real-time environmental temperature and humidity monitoring system can be widely used in high-precision remote monitoring of temperature and humidity in laboratories, warehouses, chip manufacturing, manufacturing and production clean areas, and other environments.
298 ZigBee wireless real-time temperature, temp and humidity logger, monitors temperature and humidity data in real time, and forms a wireless real-time environmental temperature and humidity monitoring system with wireless gateway and software. The web-based monitoring software has powerful trend drawing, data recording, analysis, and reporting functions. The temperature and humidity sensors used in the logger has excellent stability and repeatability.
298 ZigBee wireless real-time environmental temperature and humidity monitoring system can be widely used in high-precision remote monitoring of temperature and humidity in laboratories, warehouses, chip manufacturing, manufacturing and production clean areas, and other environments.
Technical Specifications
Logger:
|
298 Dual-channel Temperature Data Logger |
||||
|
Name |
Dual channel thermocouple temperature logger |
Dual channel RTD temperature logger |
Dual channel thermistor temperature logger |
|
|
Model |
298TC/K |
298TC/T |
298RTD |
298NTC |
|
Range |
-100 ~ 1372°C |
-100 ~ 400°C |
-80 ~ 400°C |
-40 ~ 150°C |
| Resolution | 0.01℃ | 0.01℃ | 0.01℃ | 0.01℃ |
| Accuracy |
±0.4°C±0.1% readouts |
±0.2°C±0.1% readouts |
±0.05°C（-80-300℃） | ±0.02°C（0-100℃） |
|
298HT Temperature & Humidity Data Logger |
|||
|
Model |
298HT-S |
298HT+HT85-S |
298HT+HC2A-S |
|
Range |
-20 ~ 85°C 0~100 %RH |
-40 ~ 105°C 0~100 %RH |
-50~100°C 0~100 %RH |
|
Resolution |
0.01℃ 0.01%RH |
0.01℃ 0.01%RH |
0.01℃ 0.01%RH |
|
Accuracy |
≤±0.3℃(5~60°C) ≤±2.0%RH(0~90%RH@25℃) |
≤±0.3℃(5~60°C) ≤±2.0%RH(0~90%RH@25℃) |
≤±0.1℃（10-30℃） ≤±0.8%RH (10~30°C) |
Wireless gateway :
|
Model |
ZCLOG IF-W（USB version） |
ZCLOG IF-WG（4G/5G） |
|
Communication |
USB、RJ45、WiFi |
USB、RJ45、4G/5G |
|
Power |
5V/1A power adapter |
|
|
Power Indicator |
Green |
|
| Size (mm) | 150*100*30 |
|
