ZCDW Intelligent Dry Block Calibrator

ZCDW Series Intelligent Dry Block Calibrator, employing innovative technology, enhances temperature uniformity, temperature control accuracy, and optimizes user experience with features such as rapid heating and cooling rates, self-calibration, intelligent communication, and convenient application tool support.

The ZCDW series intelligent dry block can be used in electric power, petrochemical, metrology, metallurgy, pharmaceutical, biotechnology, food, machinery, transportation, and other industries. It is suitable for laboratory, on-site calibration, testing and other application scenarios, significantly improving the efficiency of metrology personnel and testing engineers.

Features

• Intelligent calibration:set the parameters,built-in thermocouple,thermal resistance and temperature transmitter calibration program would automatically complete the calibration work.

• Intelligent remote control:connect to a smart phone or computer via WiFi to remotely operate the dry body furnace

• Dual-channel electrical measurement: onestandard RTD channel, one channel for testing, including thermocouple,thermal resistance,and loop measurement

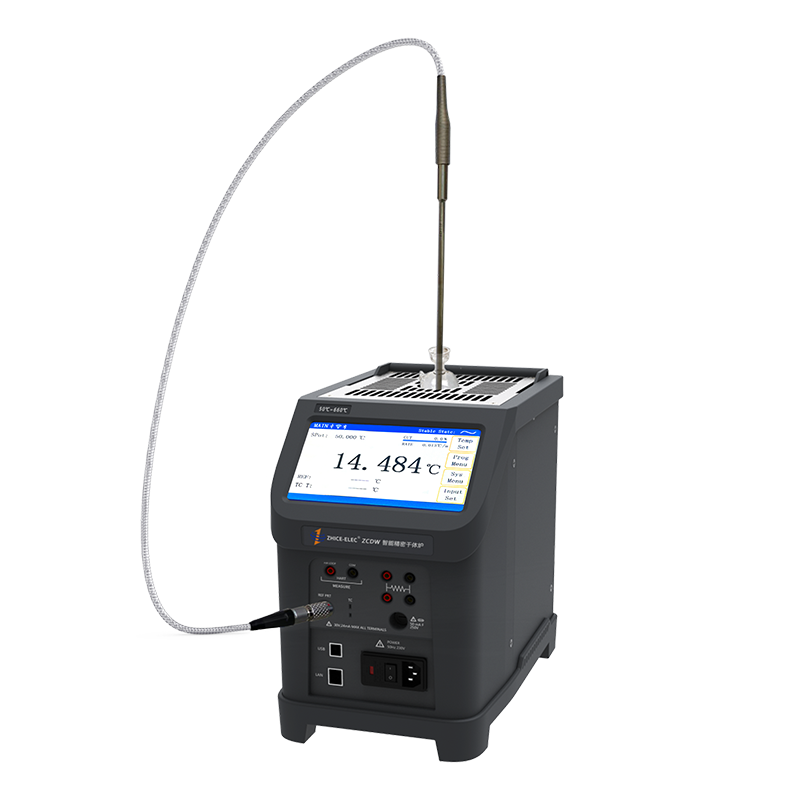

• Intelligent standard thermometer: The built-in chip of the aerial connector stores the standard ITS-90 parameters and information, automatic read-in, plug and use

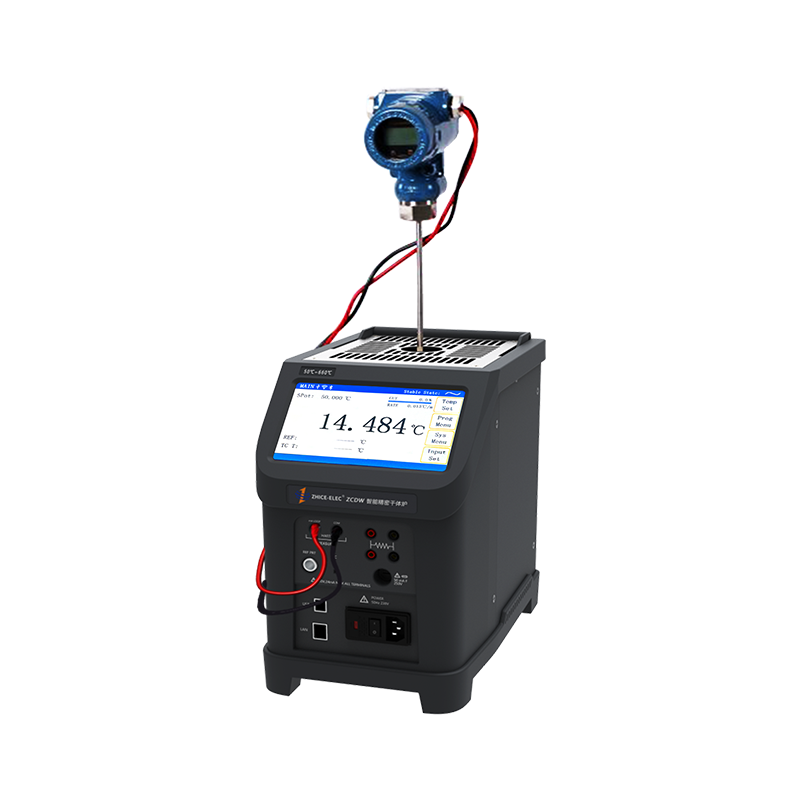

• Support HART intelligent temperature transmitter calibration

• Support the self-calibration of the internaltemperature control sensor,and support the external standard RTD temperature control method

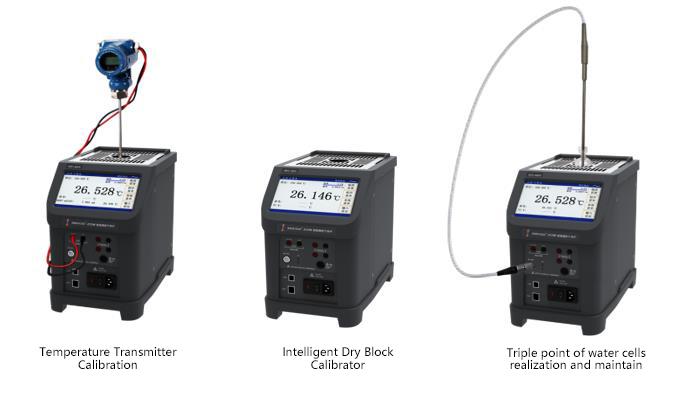

• The low-temperature version supports small size triple point of water cells freezing and storage

• Multiple safety protection: the materials are optimized with VO fireproof grade,and has over-heat automatic protection function

Temperature Specifications

Electrical Specifications

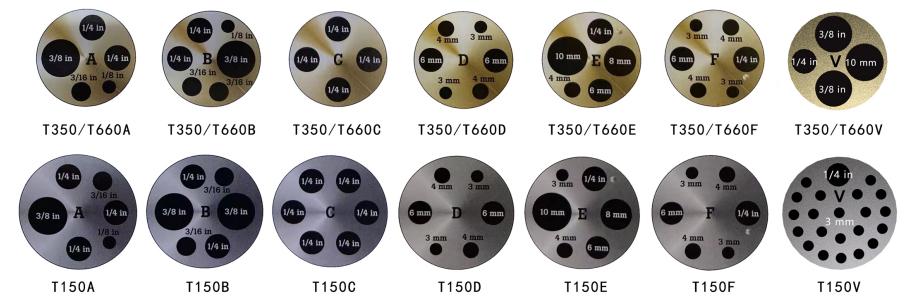

Insert
